TYPE-ES Slotted Drainage Channel

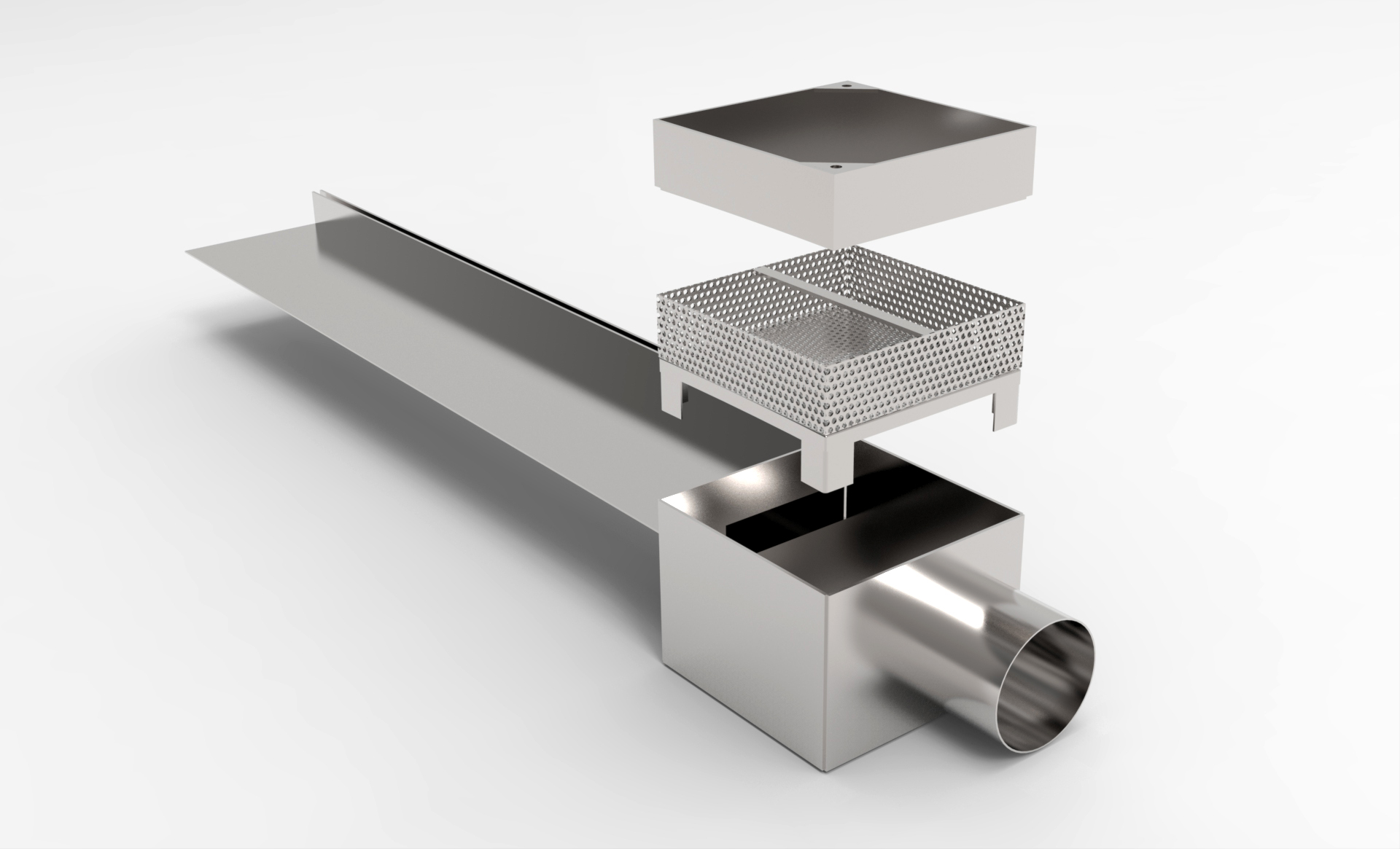

Type ES slot channel – with gully with basket exploded

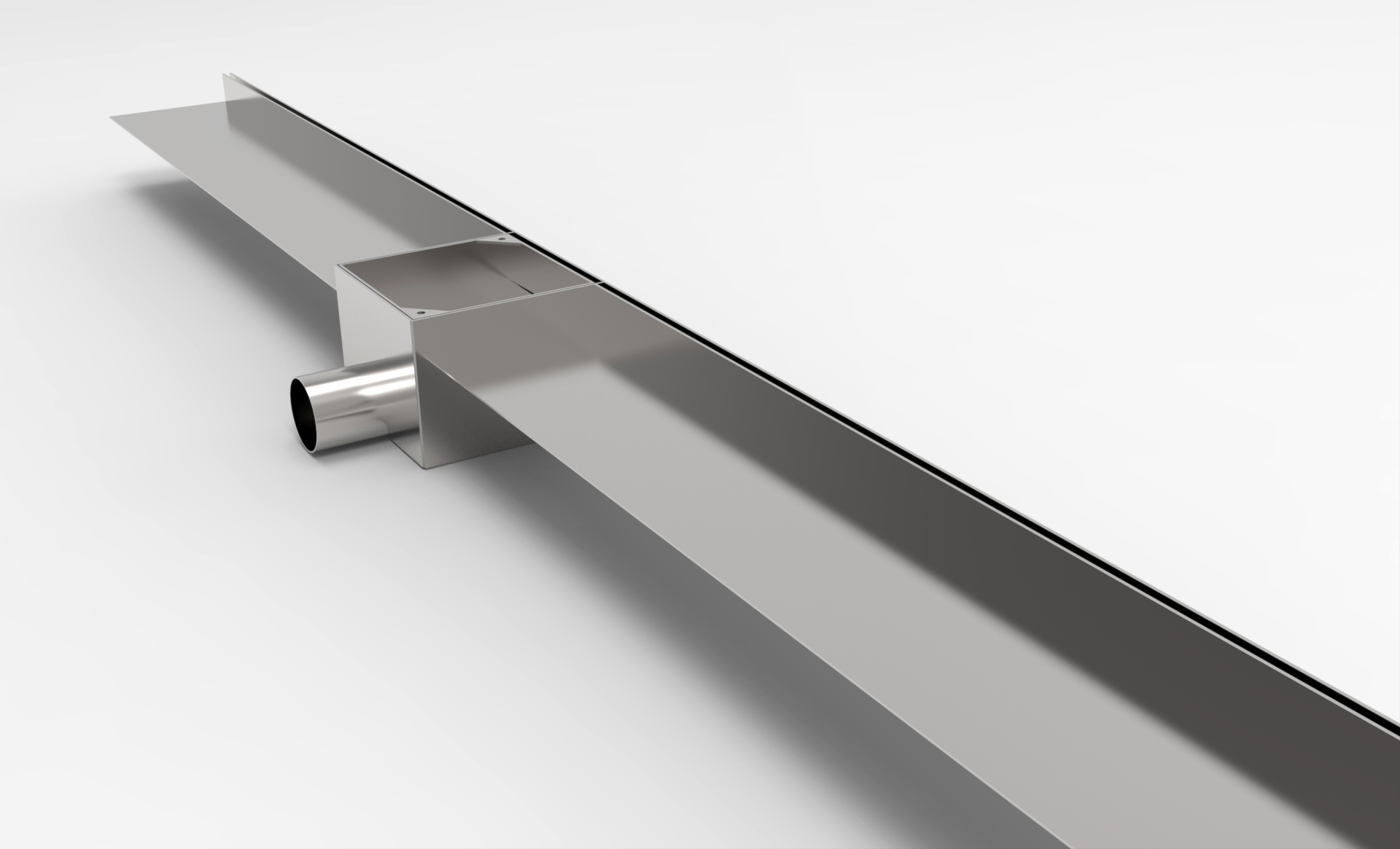

Type ES slot channel – with in-line gully

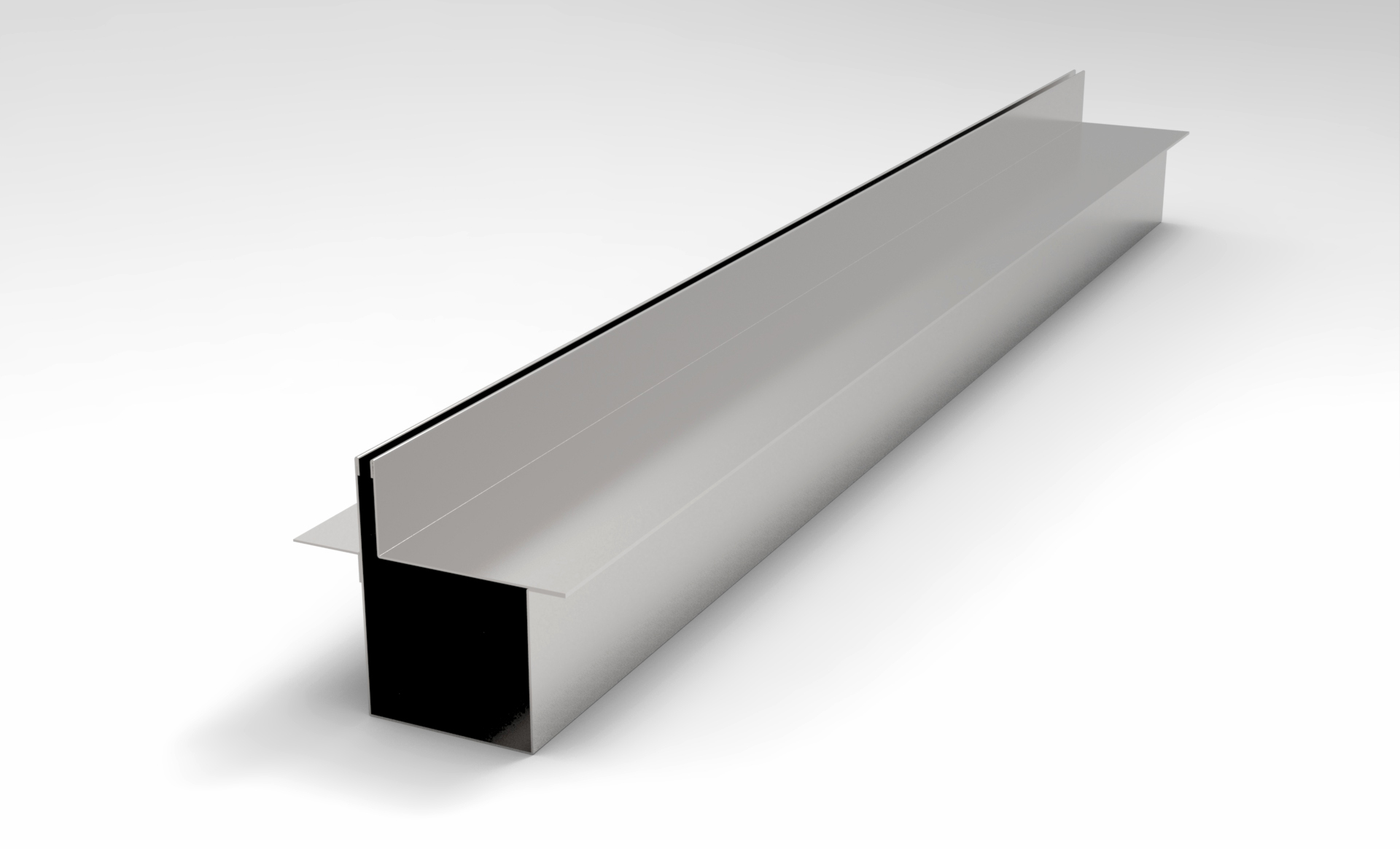

Type ES slot channel – with rear Flange A
Type ES slot channel – with Rear Flange B

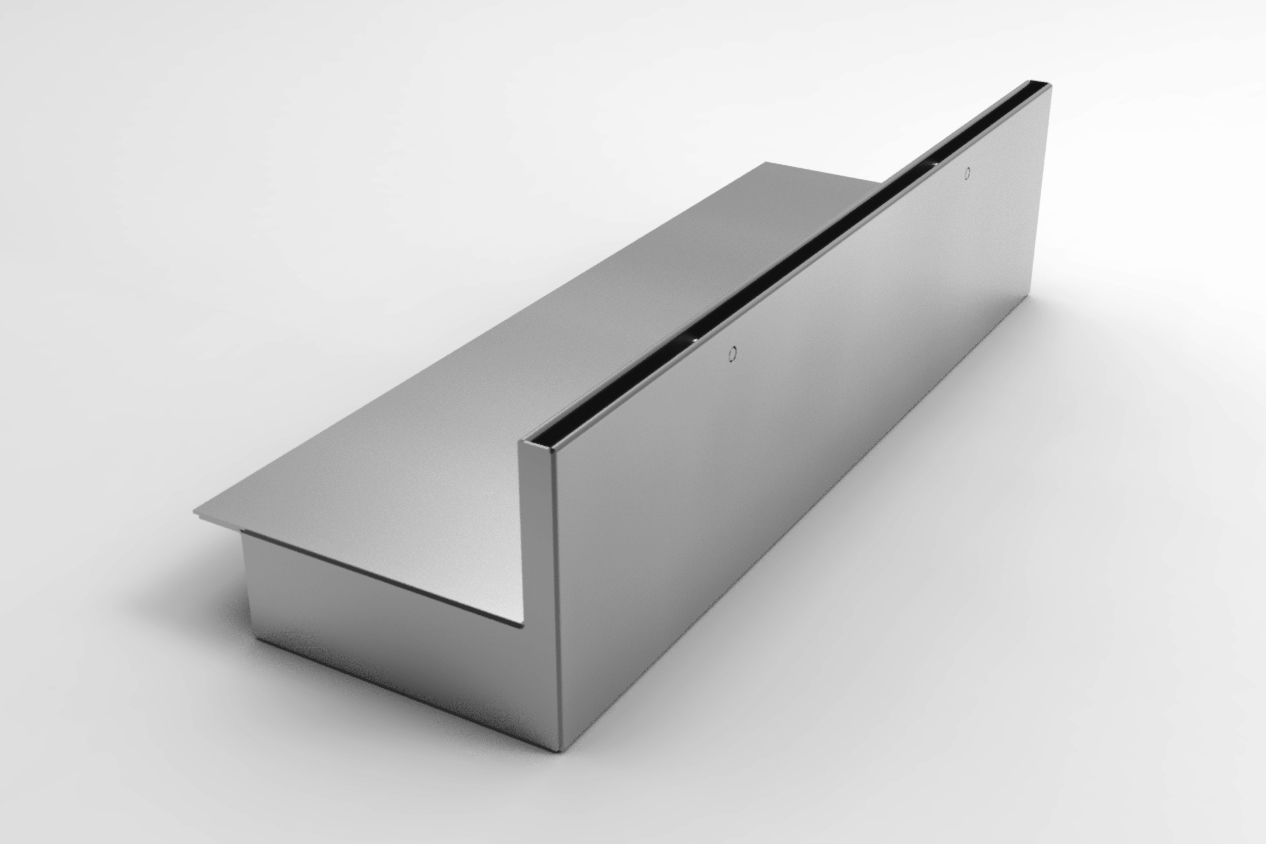

Type ES Slot Channel

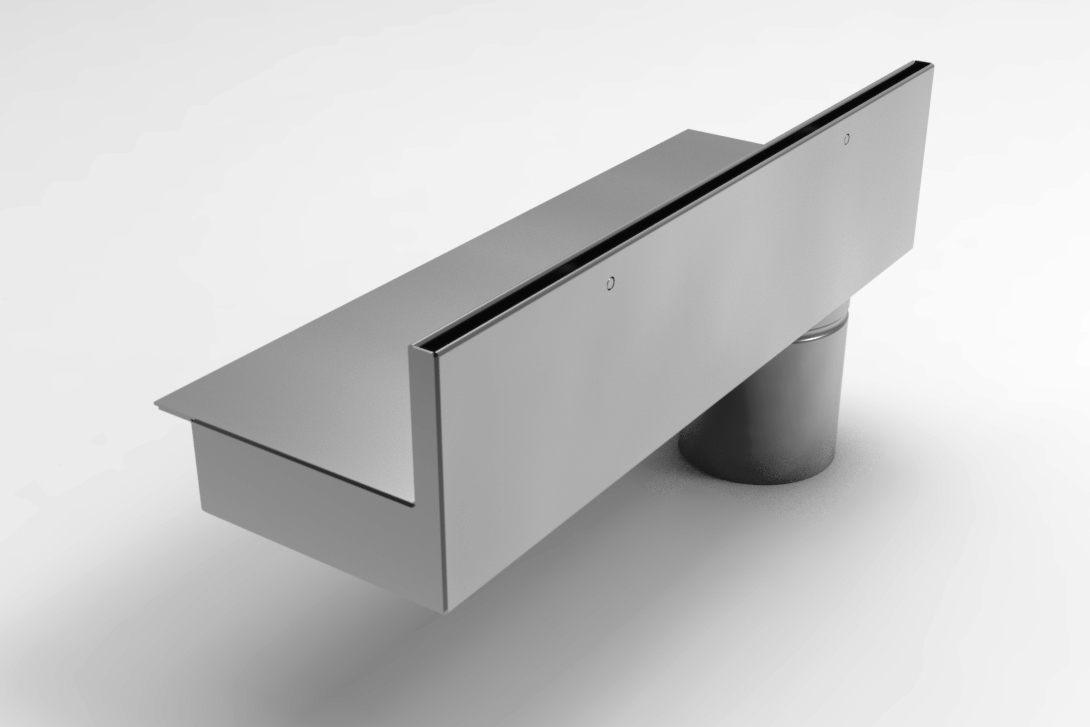

Type ES Slot Channel – with 110mm Vertical Outlet

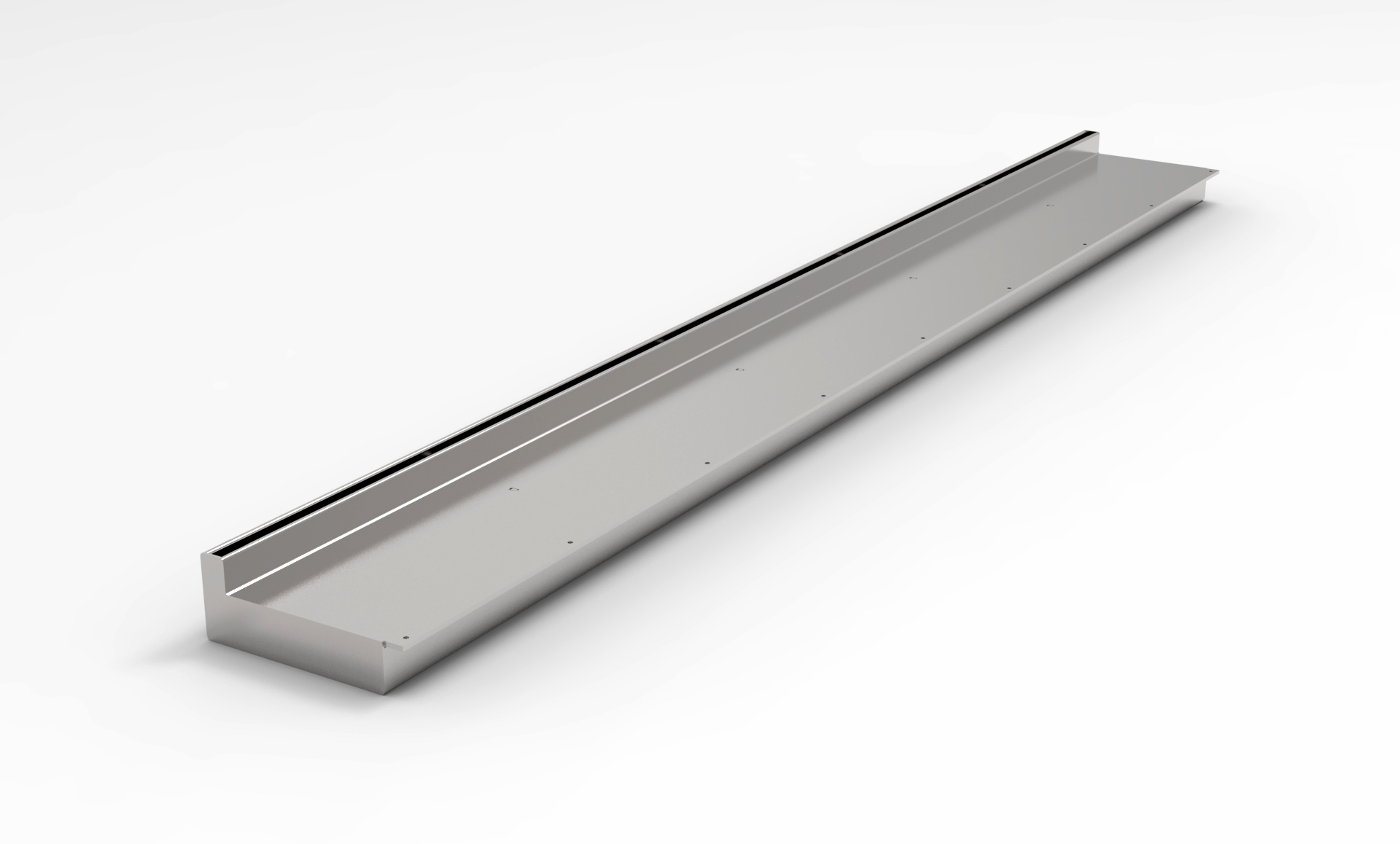

Type ES Slot Channel

ES Curved Channel

Type ES Channel – Curved Section with Gully – Exploded
Type ES Channel – Curved Section with Gully in Middle
Type ES Channel – Curved Section with Gully
Type ES Channel – Curved

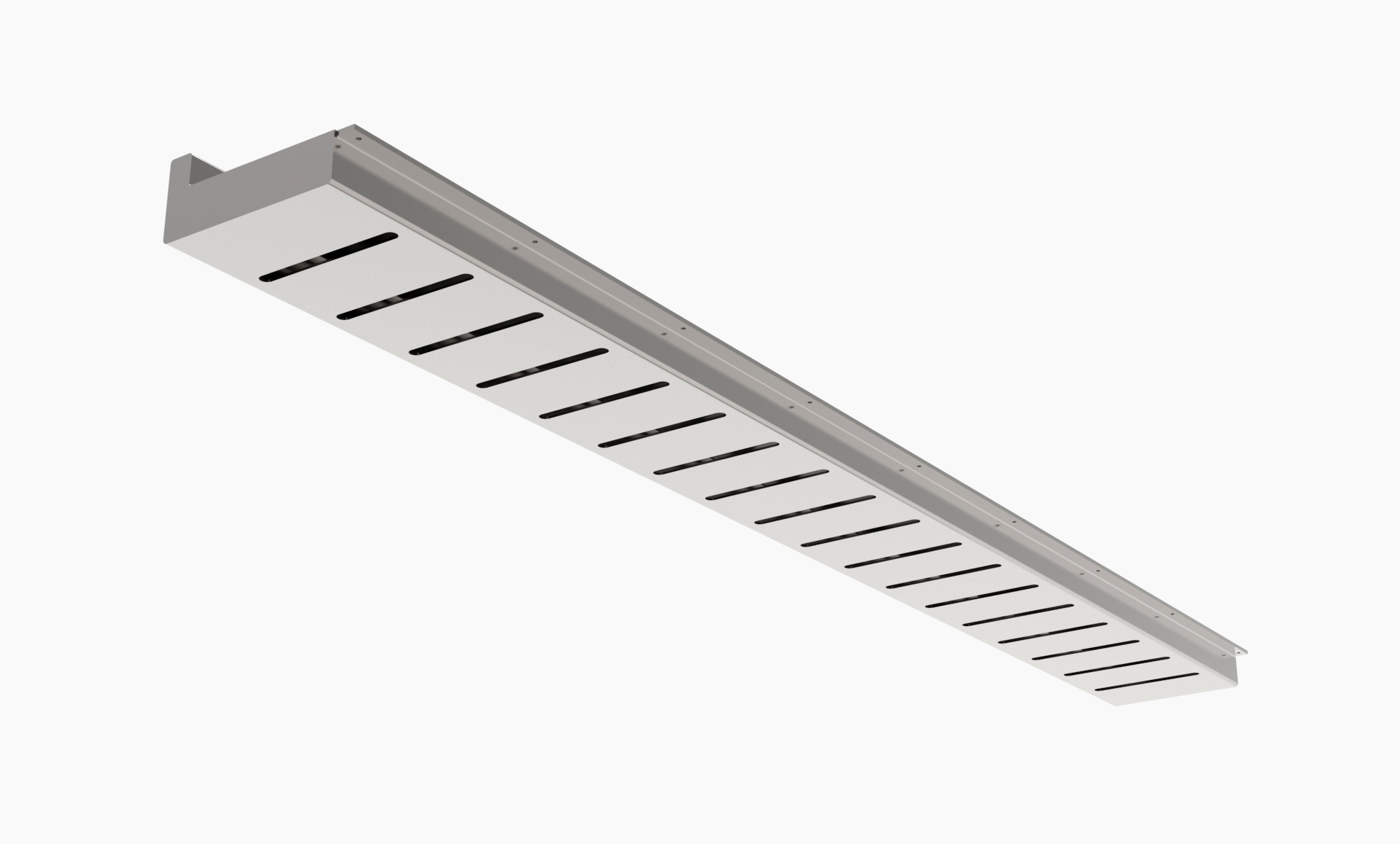

ES slot channel with secondary drainage slots in the base.

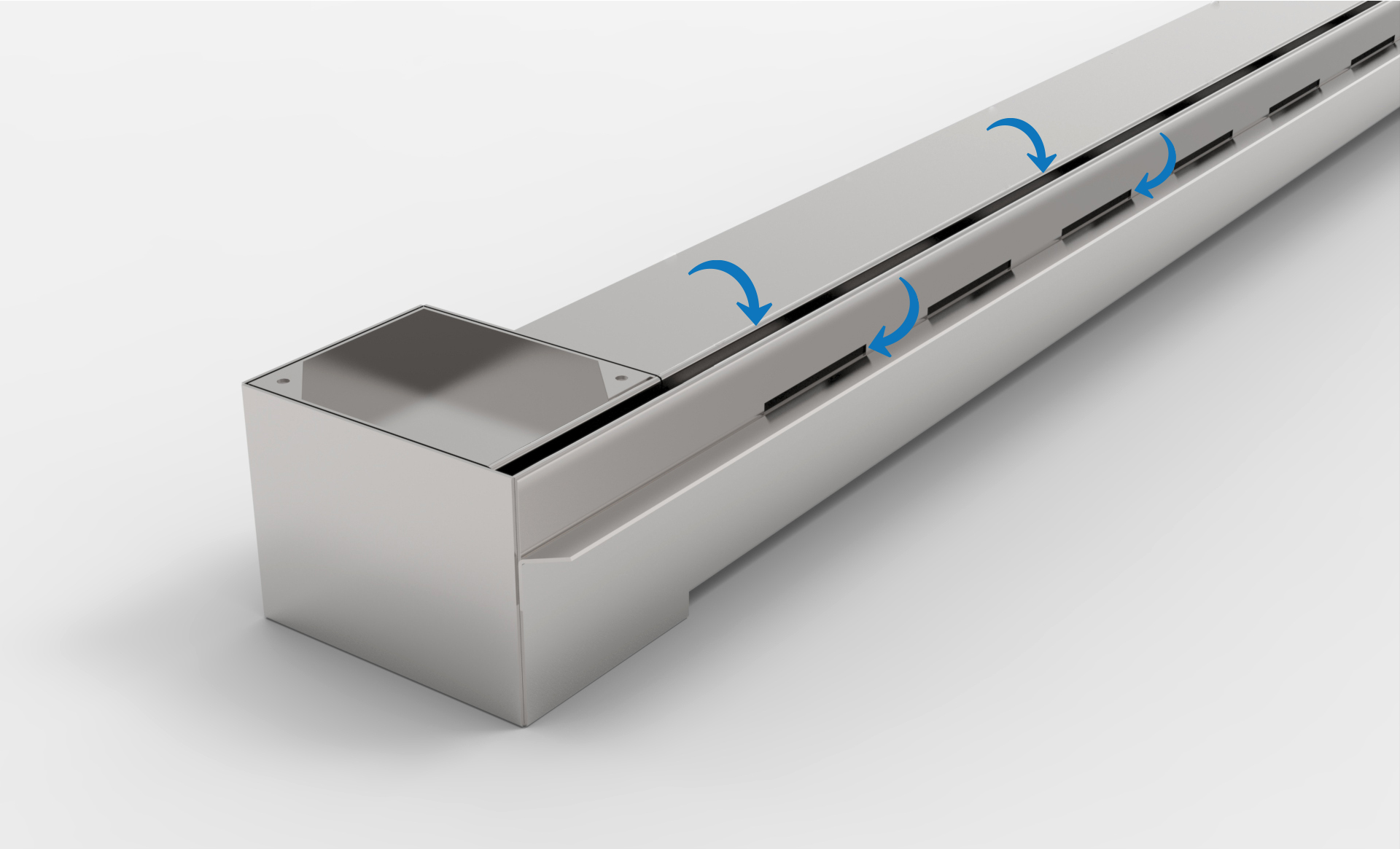

Type ES-SD with Angle Flange & Removeable Section & flow arrows

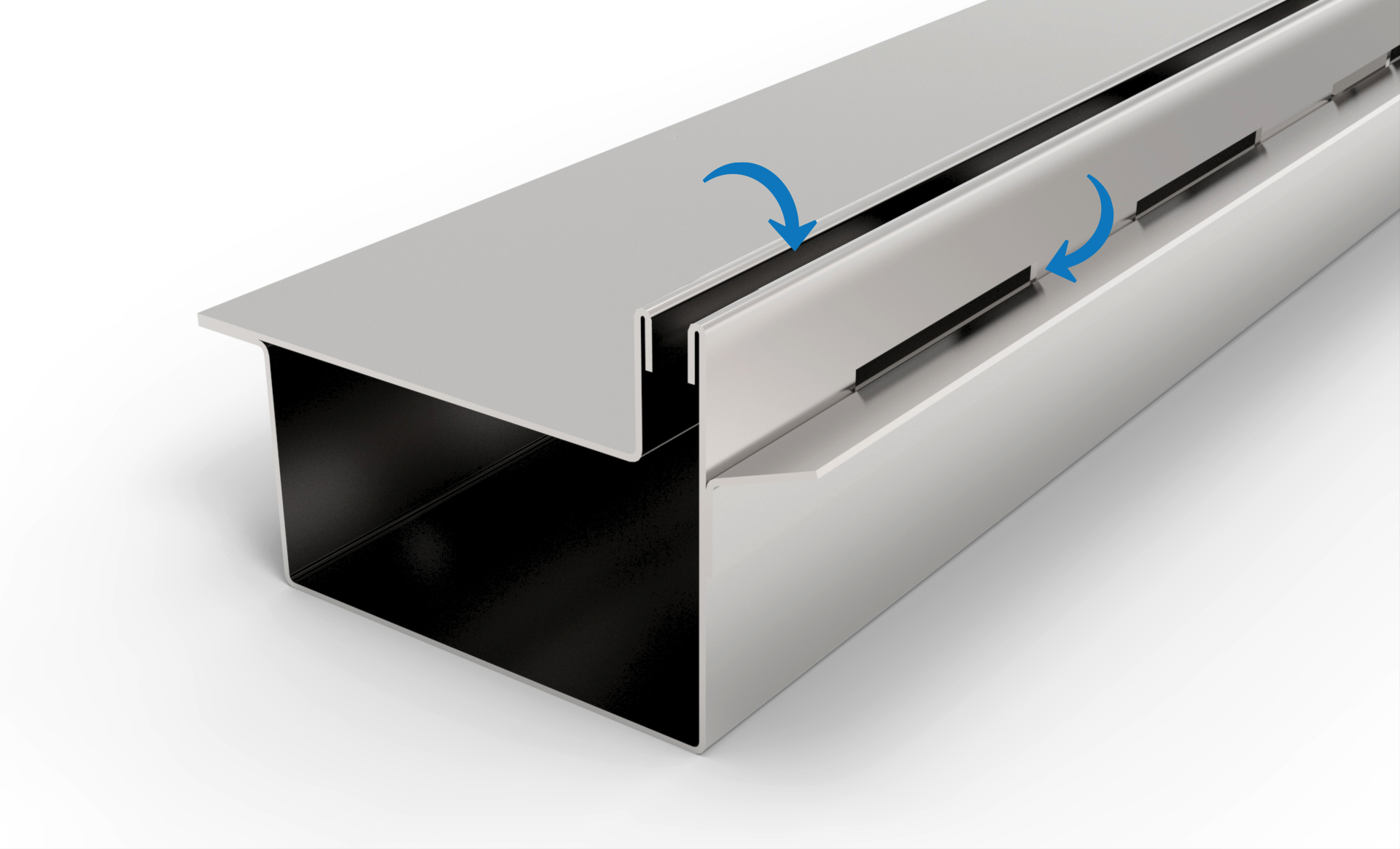

Type ES-SD with Angled Flange 001 with flow arrows
Type ES-SD with Angled Flange 002 with flow arrows

All stainless steel slotted drainage channel with single 10mm toebar. Can be used against a sidewall.

  • Overall standard width is 56mm.
  • Minimum overall depth is 50mm.
  • Secured toebar.
  • 5mm drainage slots.

Order Information

Type ES channel. Please contact us to specify details such as overall length, width, outlet type and location.
