RG-160 Round Floor Gully

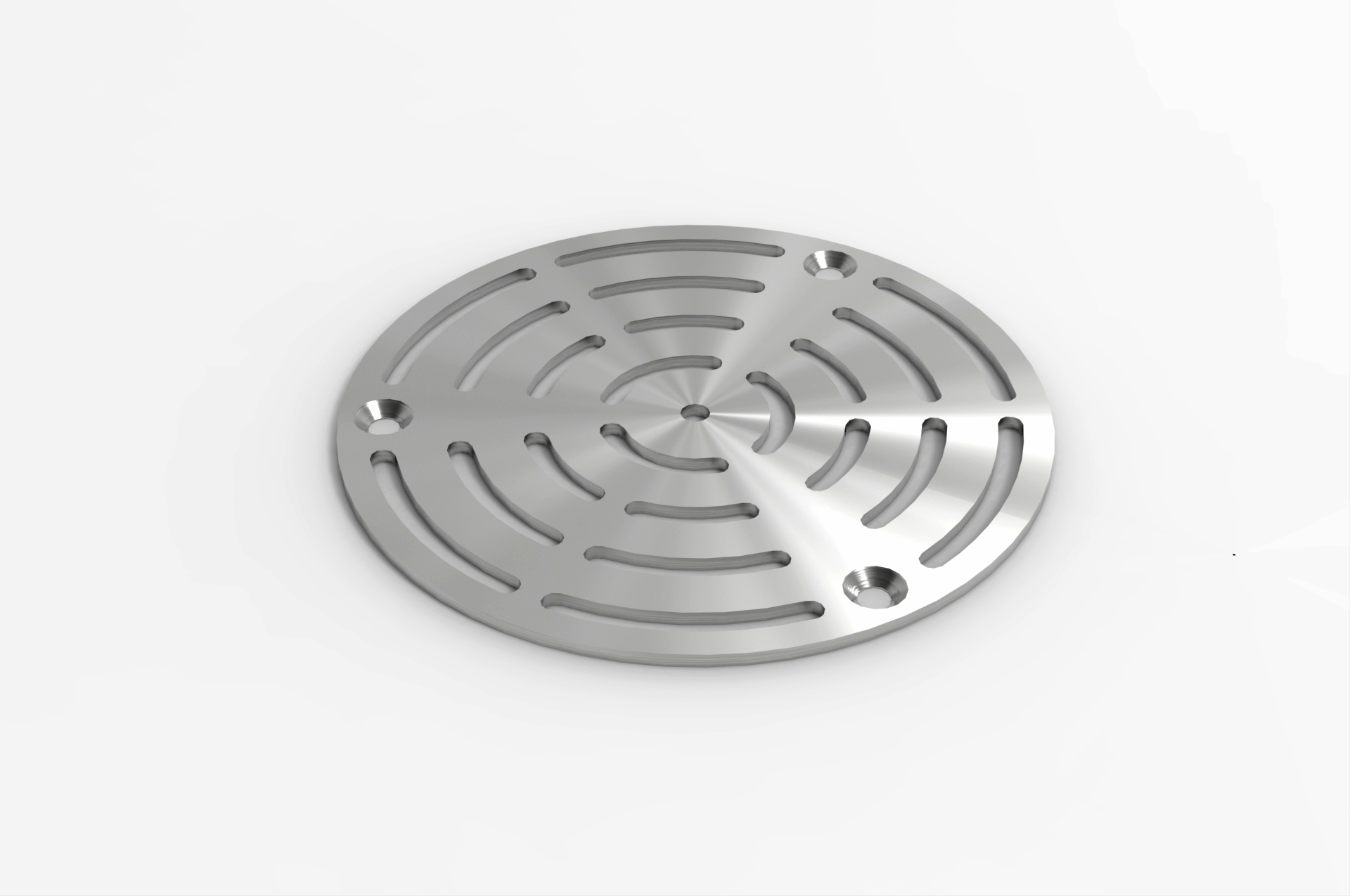

RG Grate

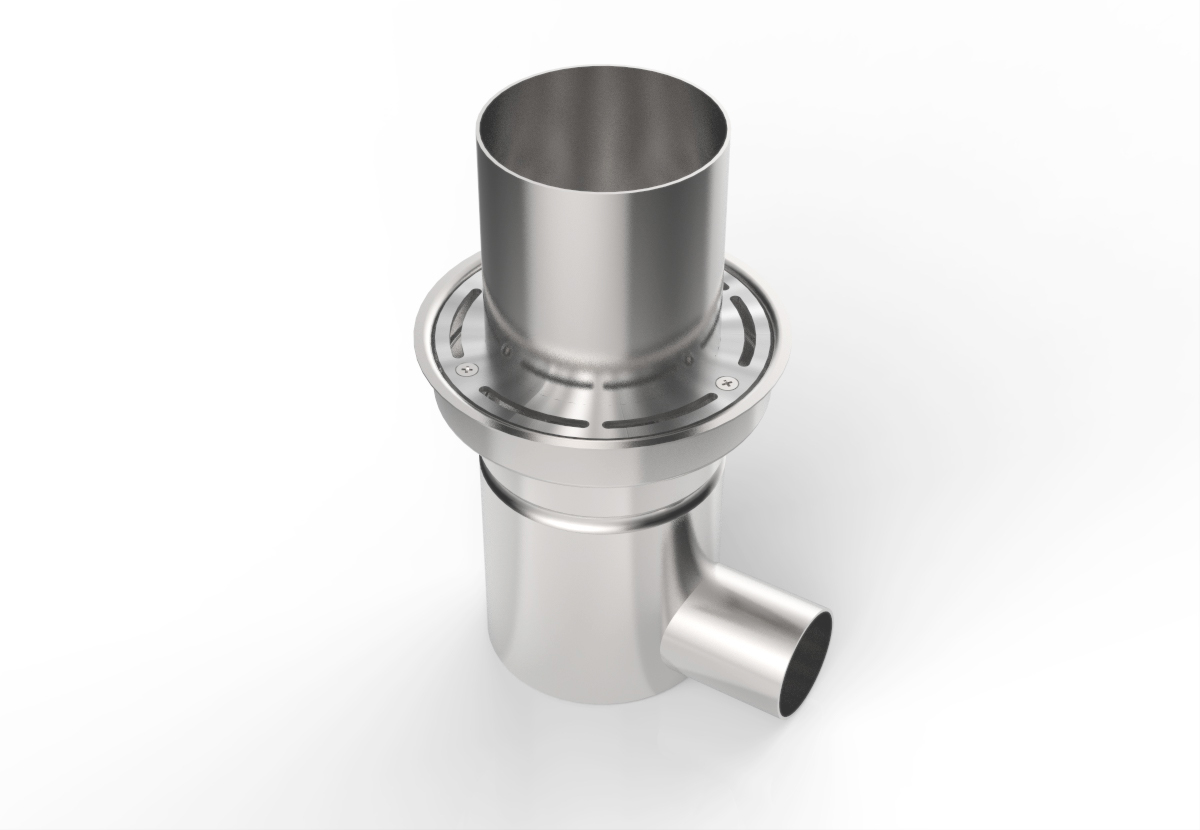

RG-160 – with Inlet Pipe & 54mm Horizontal Outlet

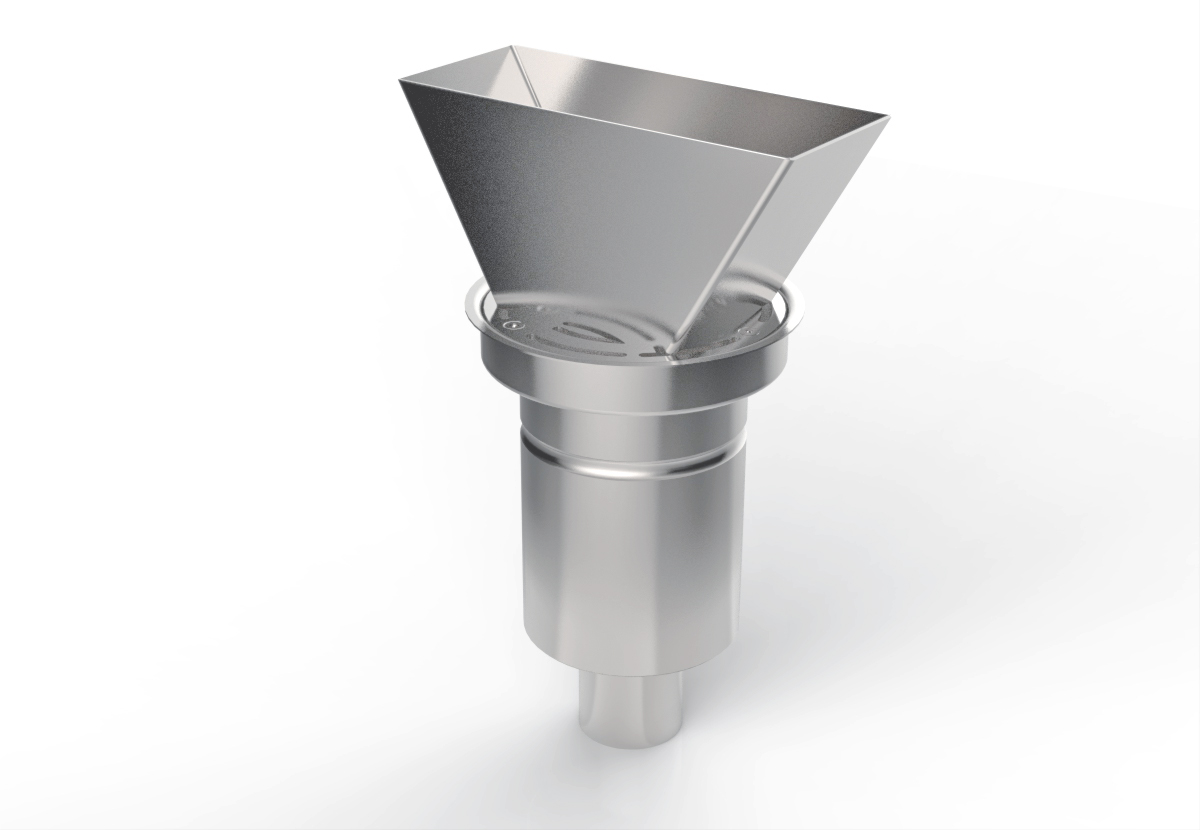

RG-160 – with Milti-Pipe Inlet

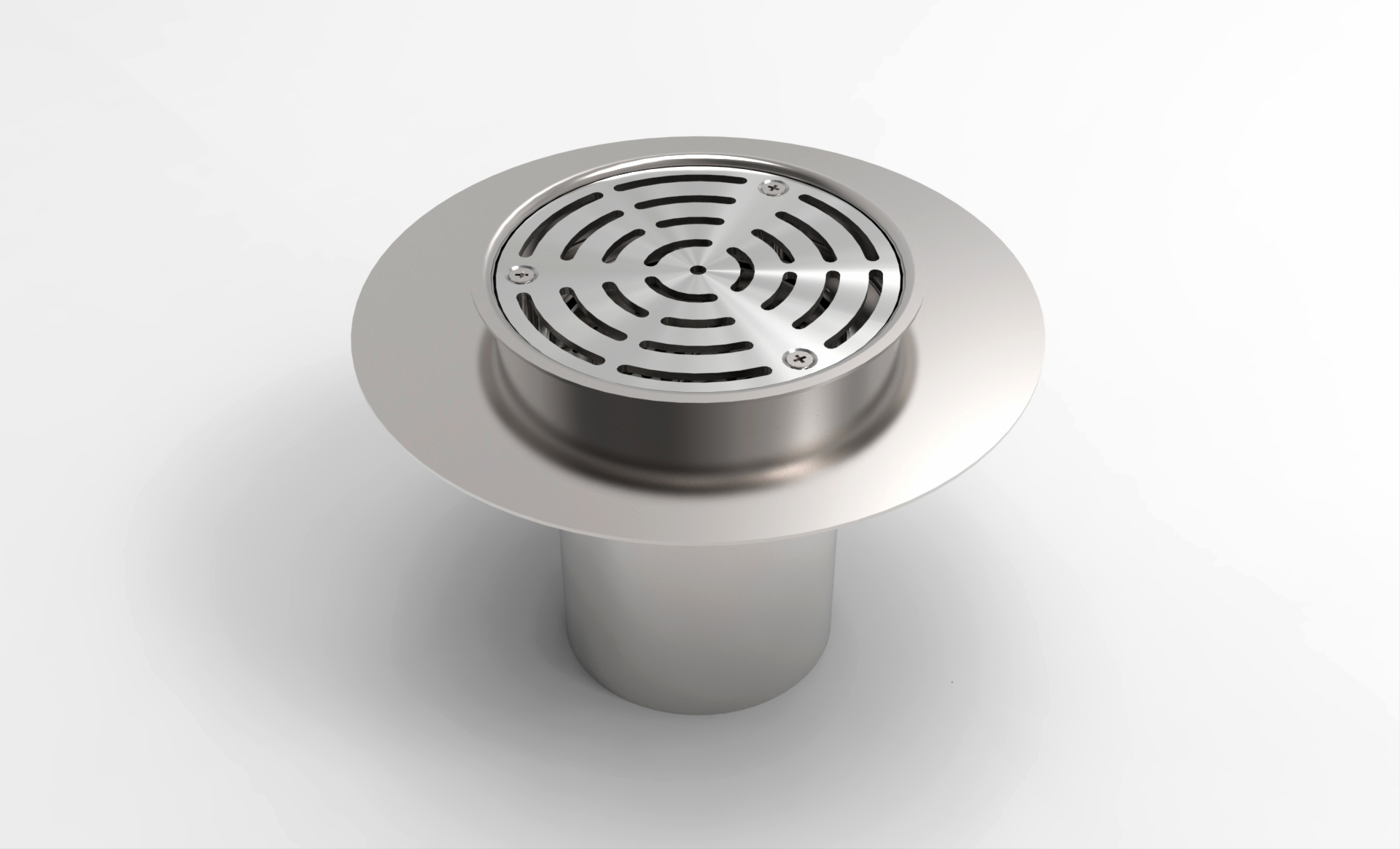

RG-160 with Flange
Standard RG-160

All stainless steel trapped round floor gully. Ideal for terrazzo or tiled finishes.

  • Horizontal or vertical outlet with a 54mm or 110mm diameter spigot.
  • Secured pressed grate. (Satin grain finish)
  • Optional removable trap (up to 1.7L/sec) and sediment basket.

Order Configurations

  • Horizontal or vertical outlet with a 110mm or 54mm diameter outlet.
  • Single or multiple downpipe inlet tops are available.

Vertical outlet 54mm diameter
Vertical outlet 54mm diameter

Horizontal outlet 54mm diameter
Horizontal outlet 54mm diameter

Multiple pipe inlet 214mm wide opening
Multiple pipe inlet 214mm wide opening

Single pipe inlet 100mm diameter
Single pipe inlet 100mm diameter

Order information

Type RG-160 round gully. For single pipe top (+SP) or Multiple pipe top (+MP). Horizontal or vertical outlet at 54/110mm diameter. Type 304 or 316 stainless steel.
