TYPE-VFC Clamping Channel

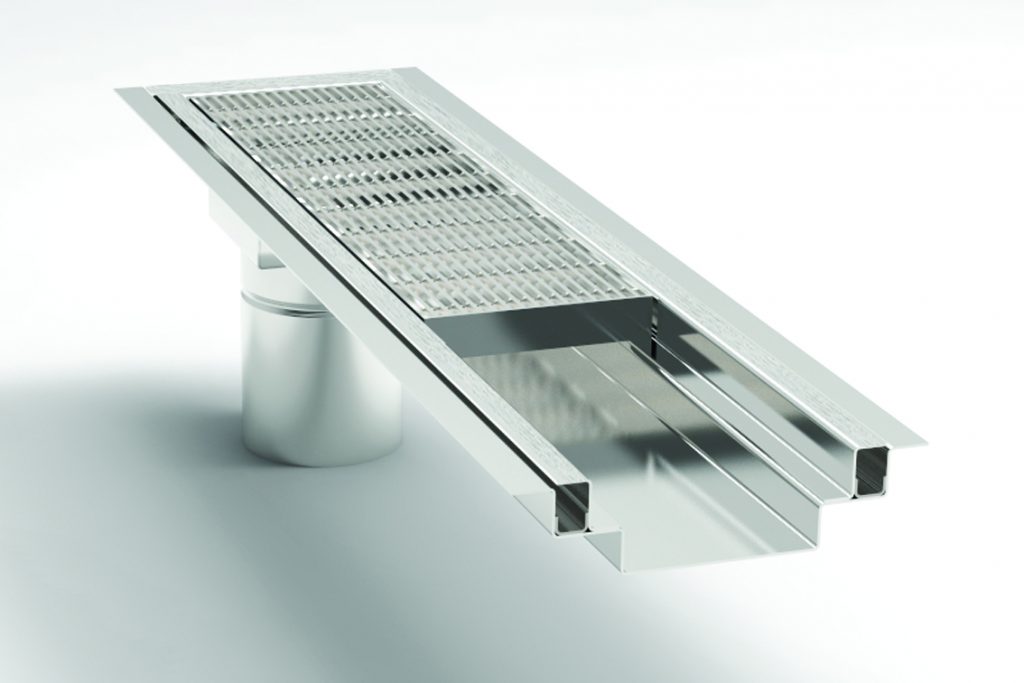

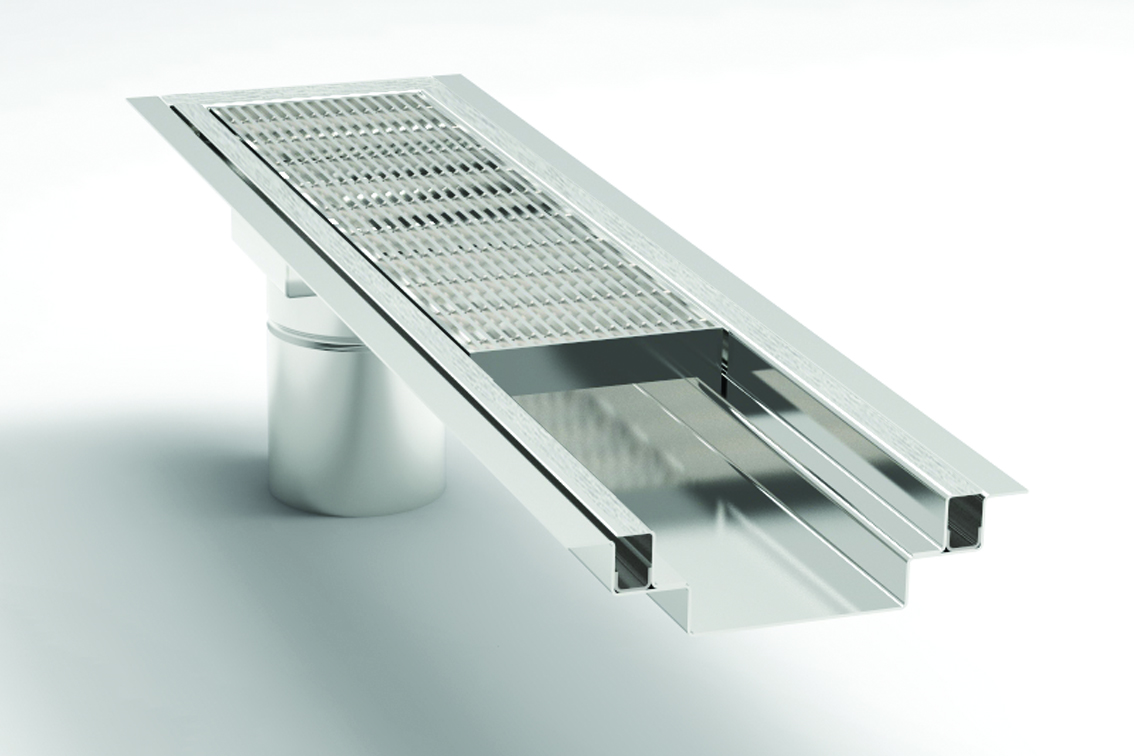

  • Type VFC Channel – with Brushed Finish

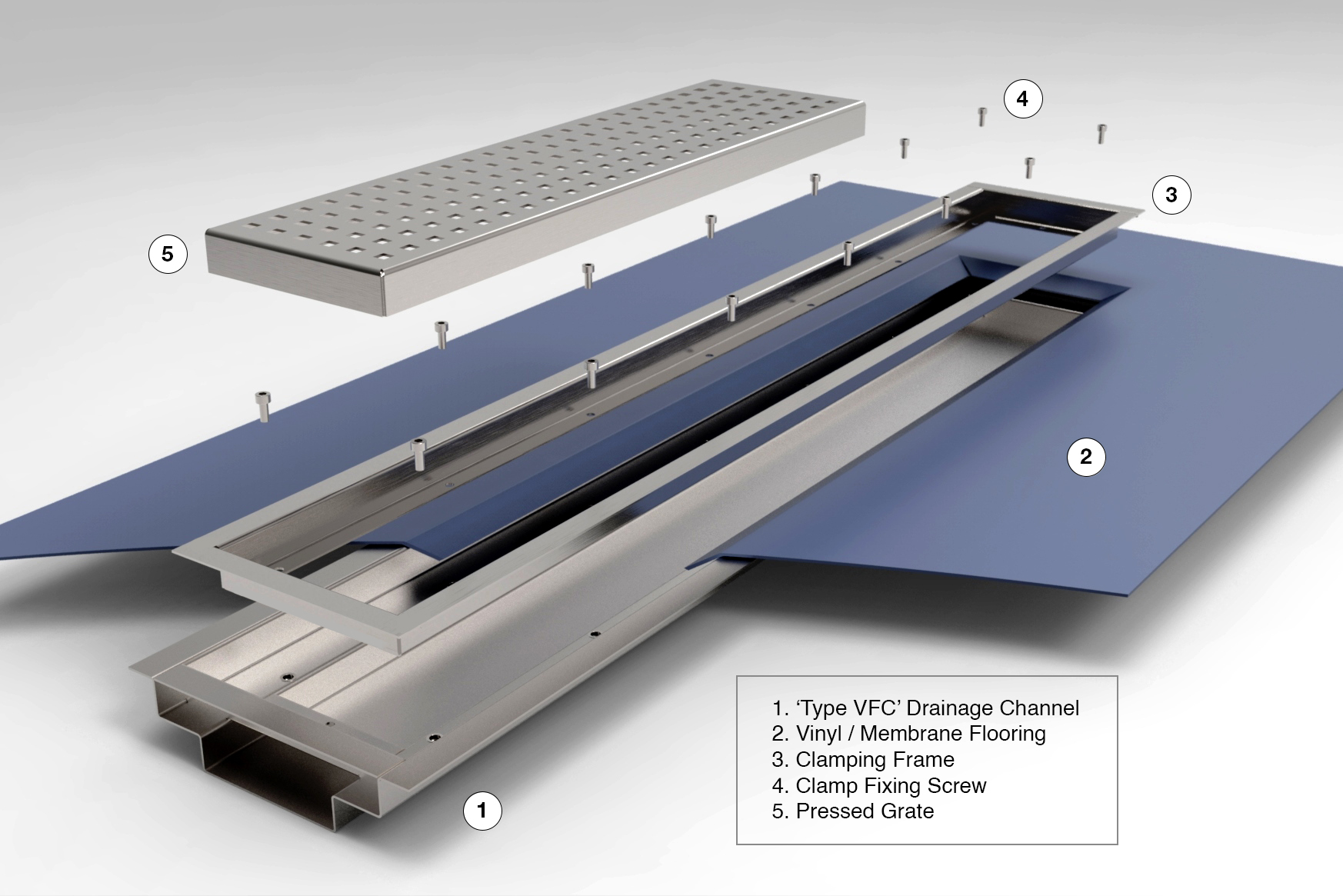

  • Type VFC Channel – Exploded Diagram

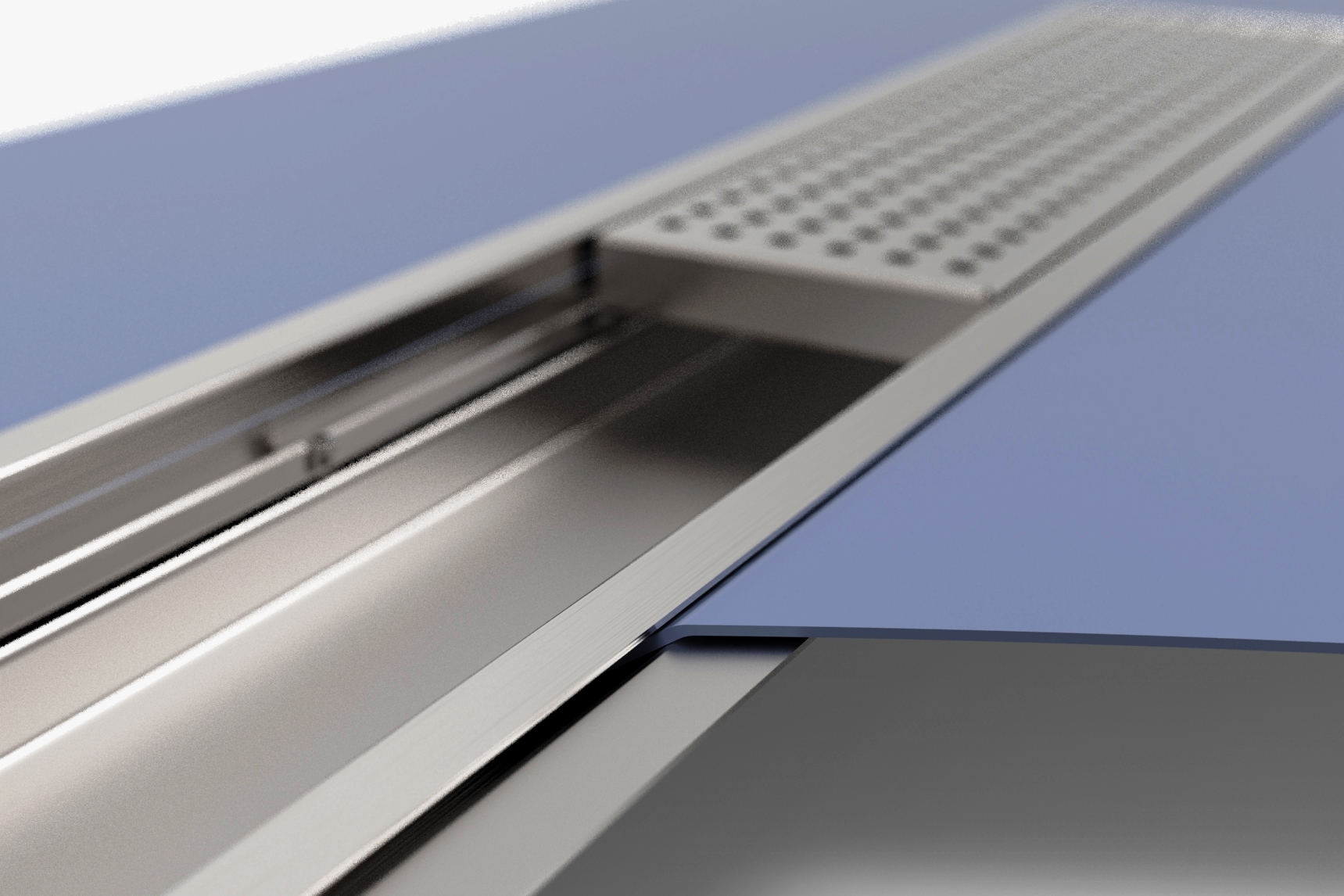

  • Type VFC Channel – In Situ, Close Up

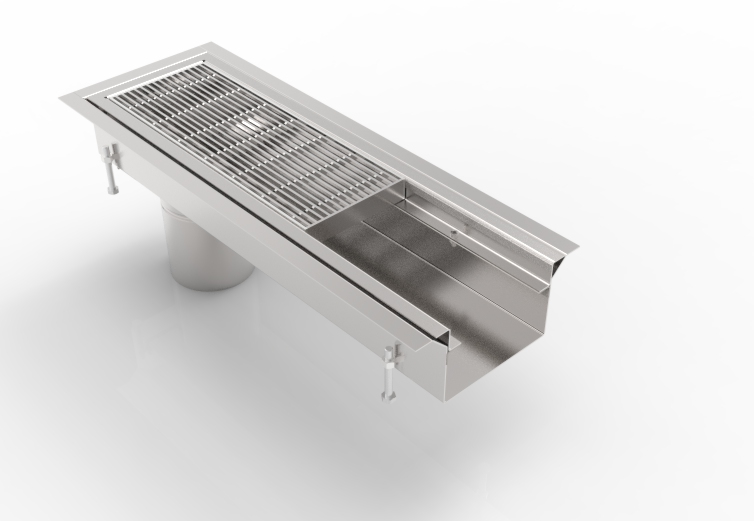

  • Type VFC Channel – with 110mm Vertical End Outlet

All stainless steel clamping channel for vinyl floors. Ideal for kitchens or showers.

  • Overall standard width is 220mm. Other options include 130 and 160 wide.
  • Minimum overall depth is 50mm.
  • Profile to fit a 25mm deep grate.
  • Adjustable levelling feet (optional).

Order Information

Type VFC channel. Please contact us to specify details such as overall length, width, outlet type and location.
