SG-200 Square Floor Gully

SG-200 Square Floor Gully
SG-200 Square Floor Gully

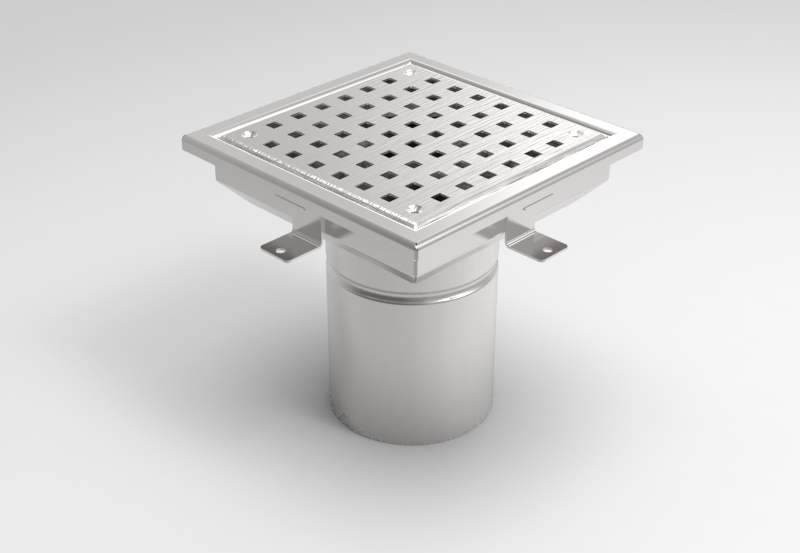

All stainless steel trapped square floor gully. Ideal for terrazzo or tiled finishes.

  • Vertical outlet with a 110mm diameter spigot.
  • Secured or non-secured pressed grate.
  • Optional grouting lugs, removable trap (up to 1.7L/sec) and sediment basket.

Other Configurations

  • Horizontal or vertical outlet with a 110mm or 54mm diameter outlet.
  • High flow option with heavy duty bar grate.
  • Adjustable height option with 30mm range. Ideal for timber deck or tiled finishes.

Vertical outlet 54mm diameter

Vertical outlet 54mm diameter

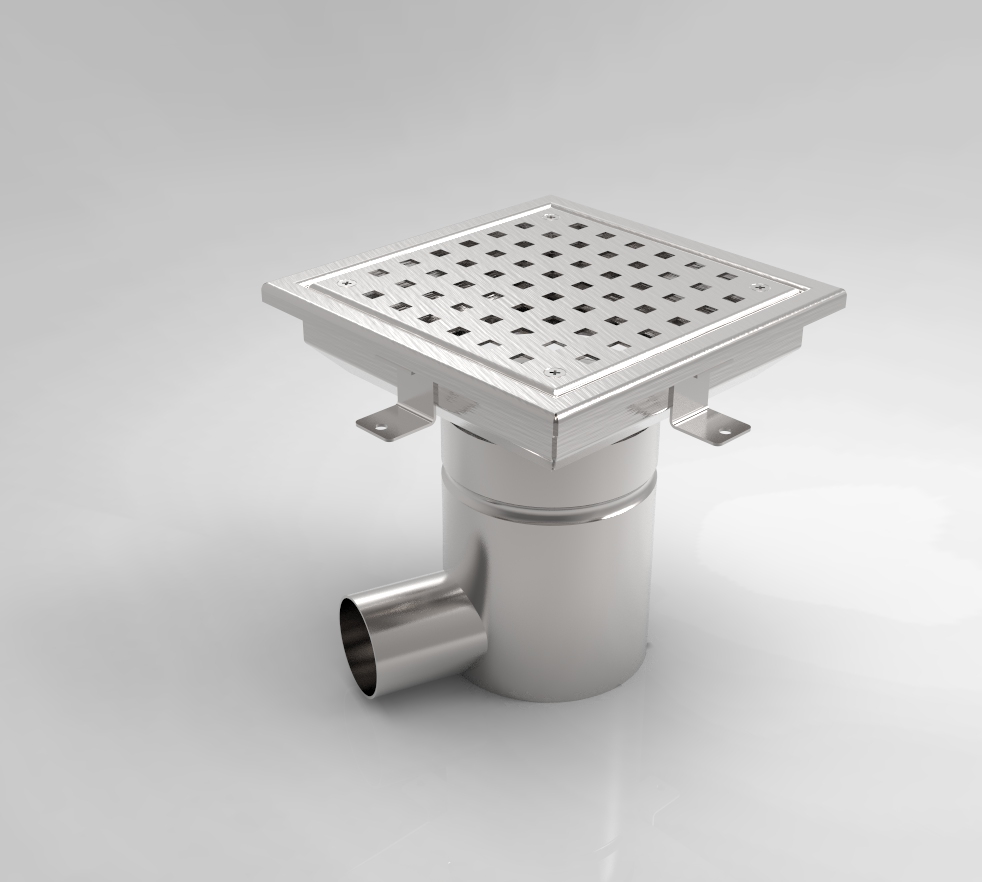

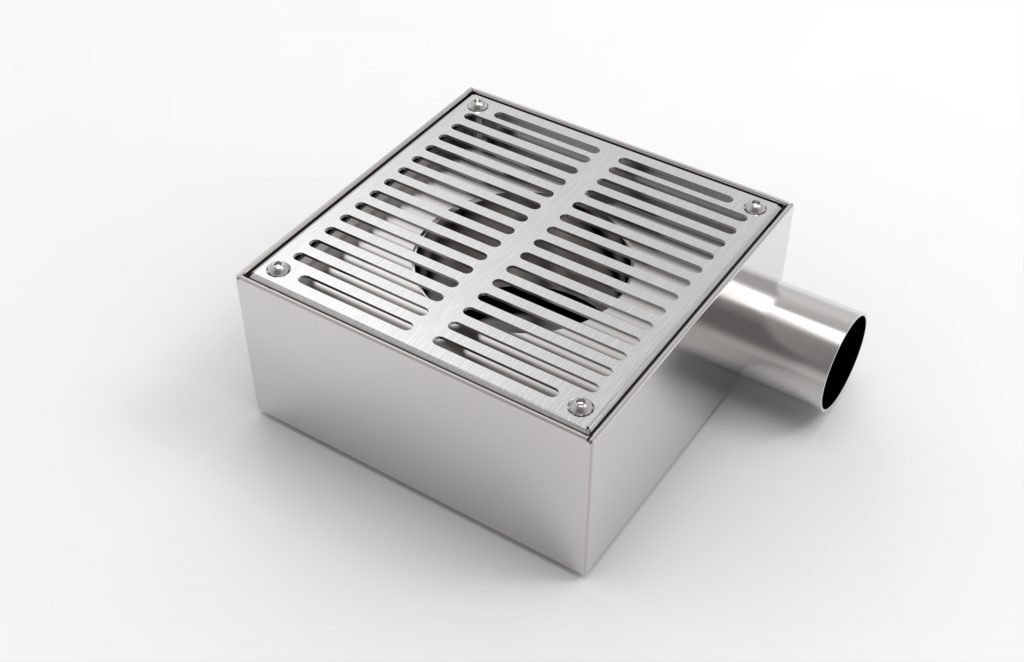

Horizontal outlet 54mm diameter
Horizontal outlet 54mm diameter

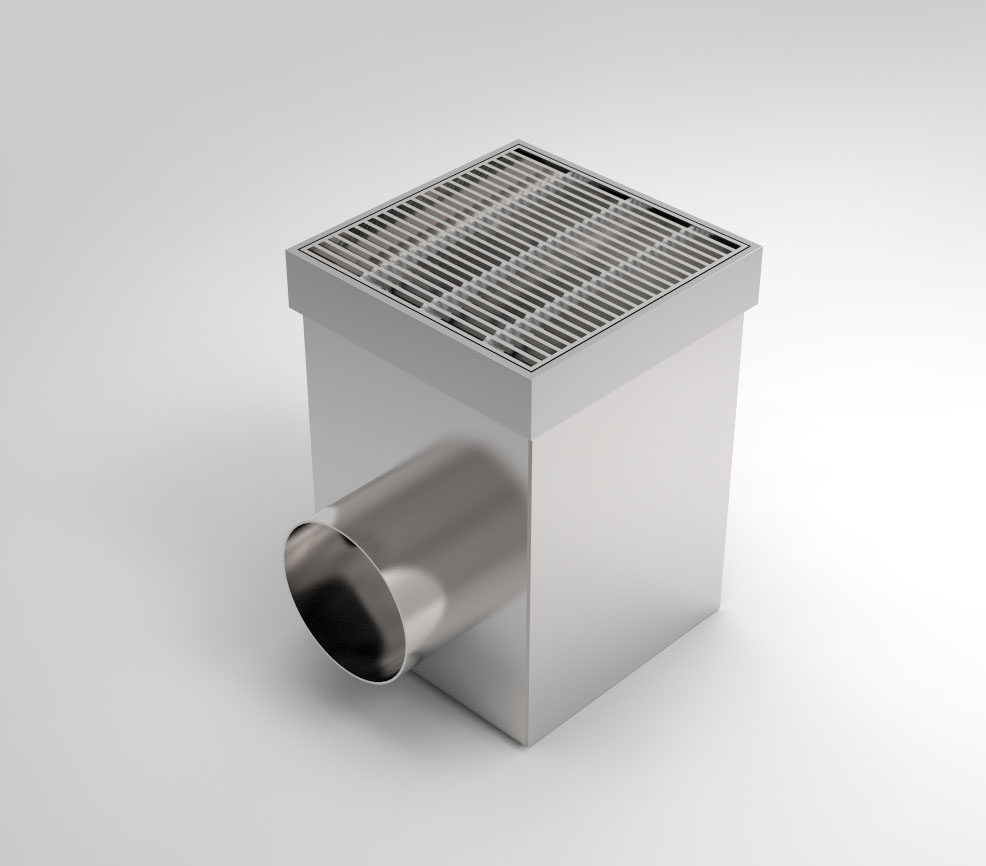

High flow horizontal outlet
High flow horizontal outlet

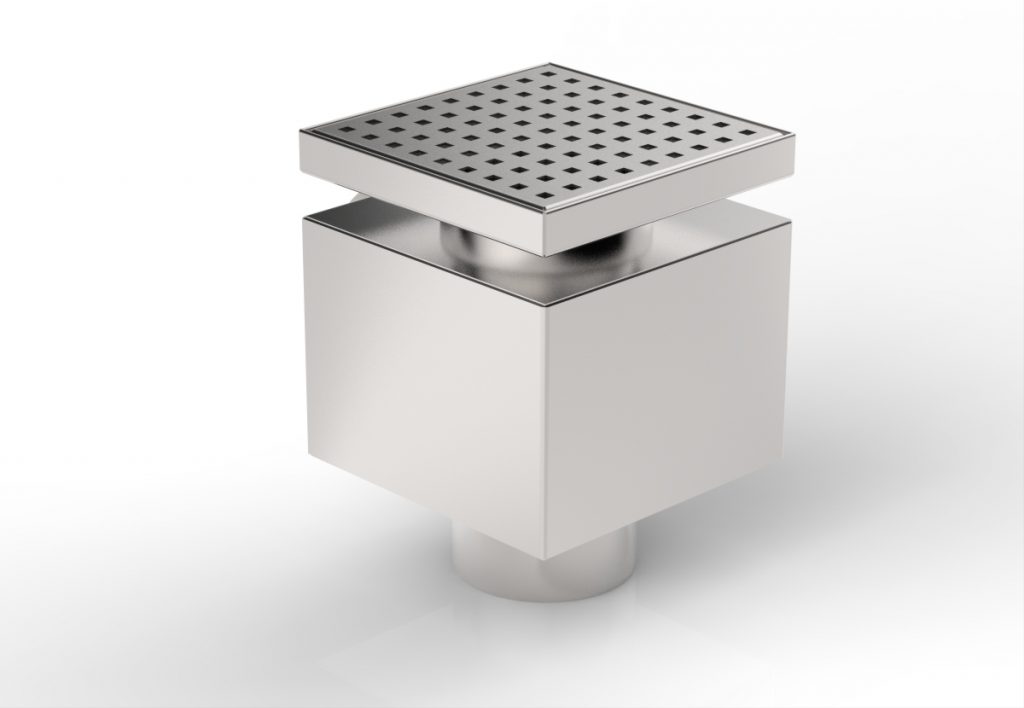

Adjustable top 30mm range
Adjustable top 30mm range

Order Information

Type SG-200 square gully. For high flow type (+HF) and for adjustable type (+ADJ). Horizontal or vertical outlet at 54/110mm diameter. Type 304 or 316 stainless steel.
