SGF-142 Square Floor Gully

  • SGF-142 – Tundish Gully

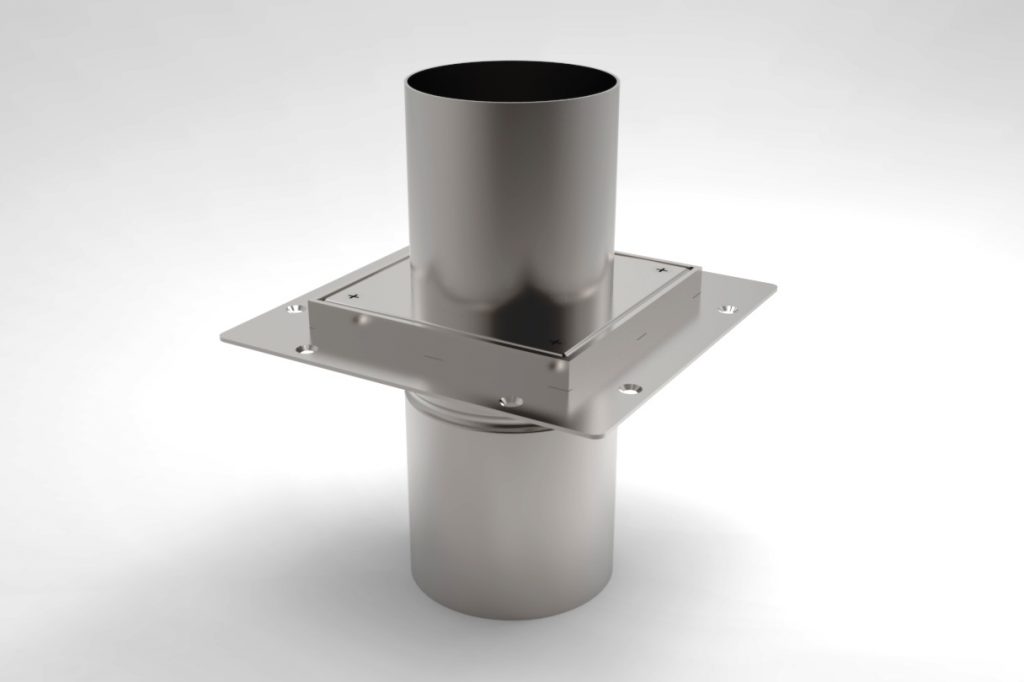

  • SGF-142 – with Top Inlet Pipe

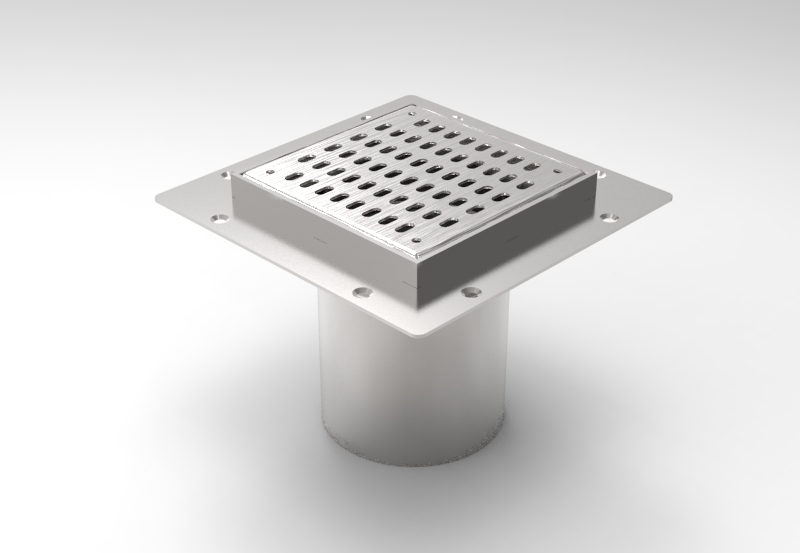

  • Standard SGF-142 – with Flange

All stainless steel trapped square floor gully. Ideal for timber deck or tiled finishes.

  • Vertical outlet with a 110mm diameter spigot.
  • Secured and non-secured pressed grate.
  • Optional removable trap (up to 1.7L/sec) and sediment basket.

Other Configuration

  • Horizontal or vertical outlet with a 110mm or 54mm diameter outlet.
  • Single or multiple downpipe inlet tops are available.
  • Blanking plates are also available.

Other Information

Type SGF-142 square gully. For a horizontal outlet (+HO) and specify diameter. For single pipe inlet (+SP) or multiple pipe (+MP). Blanking plates (+BP). Type 304 or 316 stainless steel.
