SGV-450 Trapped Square Floor Gully

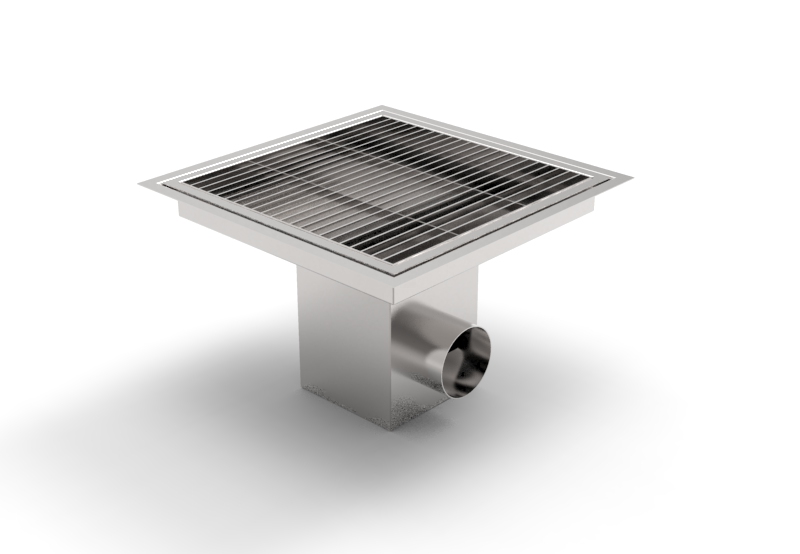

  • SGV-450 – with Anti-Slip Bar Grate & 110mm Horizontal Outlet

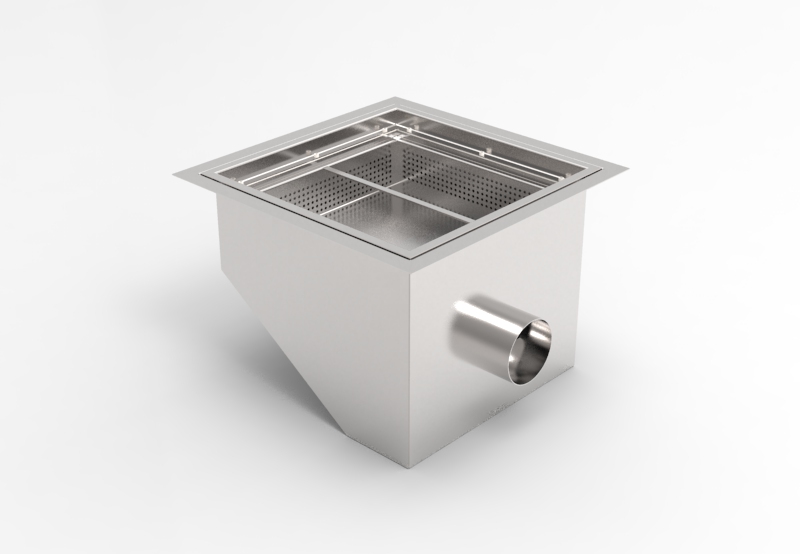

  • SGV-450 High Flow – with 110mm Horizontal Outlet

All stainless steel trapped square floor gully for vinyl floors. Ideal for kitchens or showers.

  • Horizontal outlet or vertical outlet with a 110mm diameter spigot.
  • Bar grate supplied (415 sq. x 30 deep).
  • Removable combined trap and sediment basket (Optional).

Other Configurations

  • Horizontal or vertical outlet with a 110mm diameter spigot.
  • High flow option with fixed trap and rodding eye.
Horizontal outlet 110mm diameter
Horizontal outlet 110mm diameter
High flow
High flow

Order Information

Type SGV-450 square gully. For high flow type (+HF). Horizontal (+HO) or vertical outlet
(+VO) at 110mm diameter. Please specify either type 304 or 316 stainless steel.
